EQUIPMENT CAPABILITIES

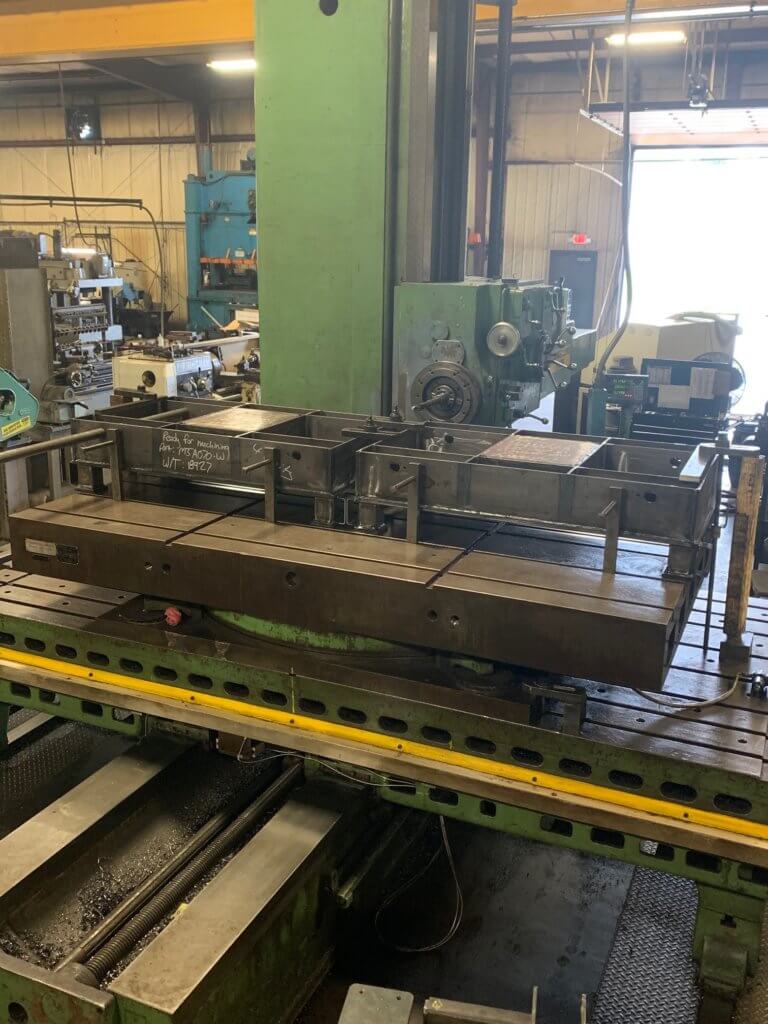

G + L Horizontal Boring Mill
60″ x 144″ TABLE, 84″ x 132″ TRAVEL
G & L – ROTARY AIR LIFT TURN TABLE 60″ x 96″
*Note: With 10 ton Overhead Crane capability we can do large projects for our customers.


2 – Hurco CNC Vertical Machining Centers
W/3D PACKAGE 30″ X 52″ TABLE TRAVEL

2 – Okuma CNC Horizontal Lathes ES L-6 & ES L-10

1 – Amera Seiki CNC Horizontal Lathe TC-4L
W/BAR FEEDER

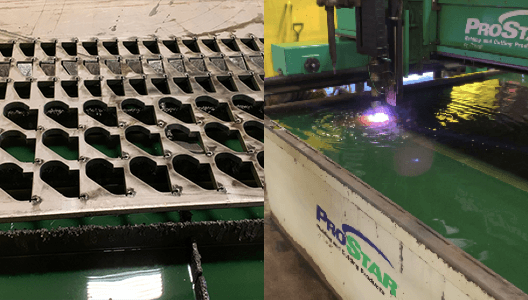

ProStar Plasma Cutter
77″ wide x 143″length cutting table
3 axis programmable
1 ½” sheet steel cutting thickness


10-Ton Overhead Crane
5-Ton Overhead Crane
3-Ton Overhead Crane

Capable of handling small and large projects


HEIM 300 Ton Mech. Press
w/52 Ton CUSHION
48″ X 100″ BOLSTER 8″ STROKE 20″ S.H.
Note:
Available for small run production
New Die & Repair runoff capability


Weld & Fabrication
w/ Large Layout Bench
MIG & Tig Miller welders
Aluminum and Steel weld capability


Quality Department
w/ all needed gages for measuring
Romer Arm Inspection
ISO 9001:2015 Compliant


Additional Equipment Capabilities:

JAPAX LUX 3 WIRE EDM – w/17 ¾ X 24 ½ TABLE 7 ¾” X 13 ¾” X 6″ MAX THICKNESS
CINCINNATI BRAKE PRESS – 225 TON
G & L HORIZONTAL BORING MILL – 48″ X 60″ TRAVEL
(9) GANESH, BRIDGEPORT & ALLIANT MILLING MACHINE’S
OKAMOTO SURFACE GRINDER – 12″ X 24″ MAGNET 12″ DIAMETER WHEEL
(2) PROFILE GRINDERS – 12″ X 48″ MAGNET 20″ WHEEL
22-42 BLANCHARD GRINDER – 42″ TABLE
BIRMINGHAM LATHE – (28″ DIAMETER MAXIMUN)
(4) RADIAL DRILL’s – (4′ ARM – 9″ COLUMN) (5′ ARM – 11″ COLUMN) (5′ ARM – 12 5/8″ COLUMN)

Note: Not all equipment is listed above.
